Rubber Stall Mats

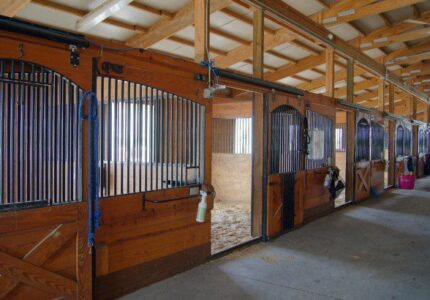

In the equine environment, stall mats are used in to provide a cushioned floor surface that is easy to keep clean.
All of our stall mat products are made using the vulcanization process. In this process, recycled tire rubber is ground into tiny pieces and chemically melted.
The liquid rubber is poured into molds where the mats are formed using carefully controlled heat and pressure. The result is a solid block of rubber that is firm yet resilient and totally waterproof.

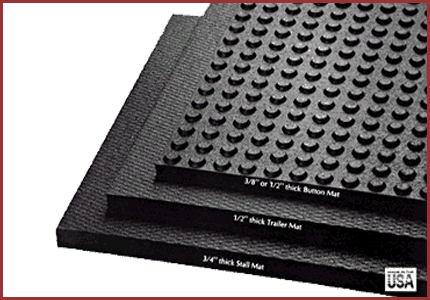

Stall mat products are available in three thicknesses, 3/8″, 1/2″ and 3/4″. These mats come in both interlocking and straight edged versions. Color options include standard black, and 22% color specks, (green, red, white and blue and glacier).
For stalls and other equine applications, the mats are produced in nominal 4′ x 6′ or 2′ x 6′ rectangles. The actual dimensions are slightly smaller, due to trimming that occurs during when these mats are “trued” to create perfectly square edges or when the interlocking tabs are created.

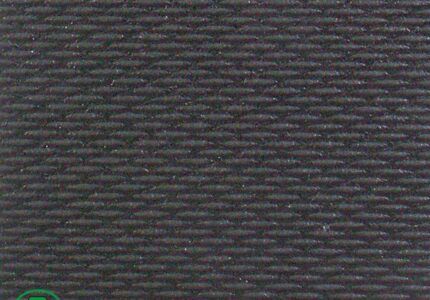

There are multiple surface treatment options. Among the most popular is a micro-diamond texture that provide excellent slip resistance in wet or dry conditions. Other popular textures include “punter-top and pebble-top.
The base of these mats also come in two versions. The standard base if flat. For applications where additional cushioning is required, a “waffle” base is also available.
Some of our Rubber Stall mat suppliers computerized, water jet technology to precisely cut their mats as needed. This process is used for truing and to produce the interlocking edges. For a small additional charge, mats can be cut at the factory to fit a customer’s custom dimensions.
In the equine environment, stall mats are used in to provide a cushioned floor surface that is easy to keep clean.
All of our stall mat products are made using the vulcanization process. In this process, recycled tire rubber is ground into tiny pieces and chemically melted. The liquid rubber is poured into molds where the mats are formed using carefully controlled heat and pressure. The result is a solid block of rubber that is firm yet resilient and totally waterproof.
Links and Downloads

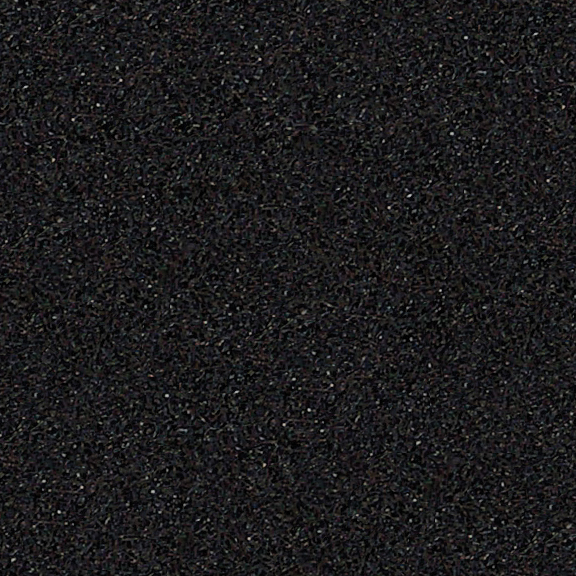

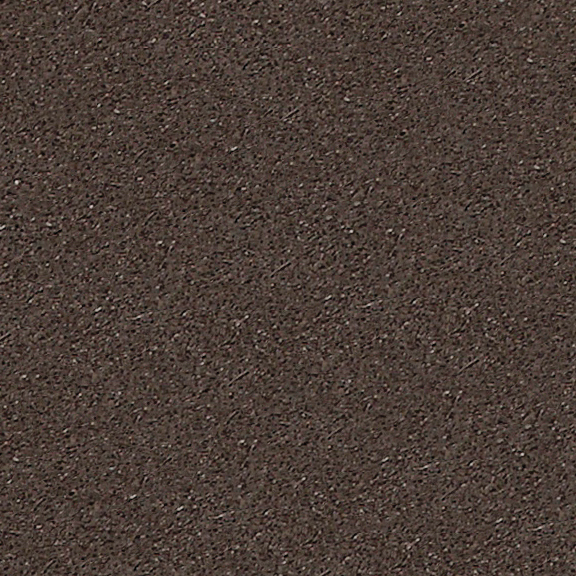

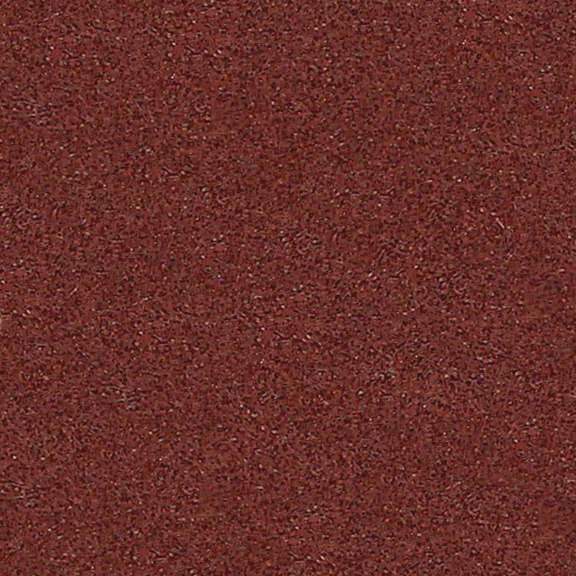

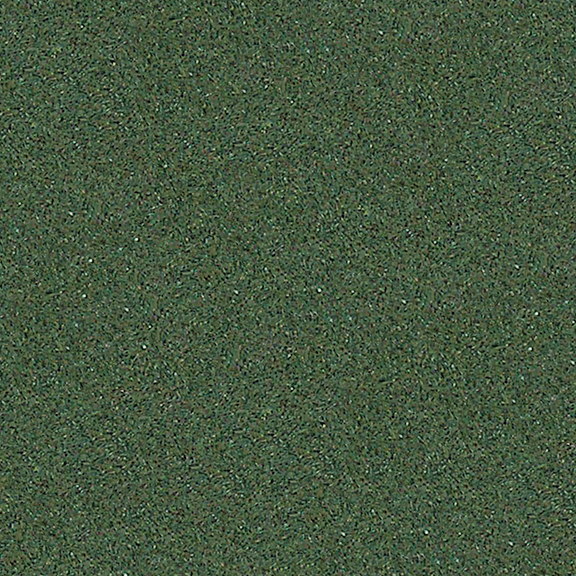

Swing Mat & Pad Colors
Color images are an approximation. The actual product colors may differ from the images displayed here.
Literature
- Swing Pad Data Sheet
- Rubberflex Swing Mat Data Sheet
- Rubberflex Swing & Slide Mat Data Sheet
Pricing
- Swing Mat Pricing
